•  The driver can optionally choose to switch the lane departure warning system (LDWS) to operational or non-operational.

•  The LDWS off switch sends a switch operation signal to the instrument cluster.

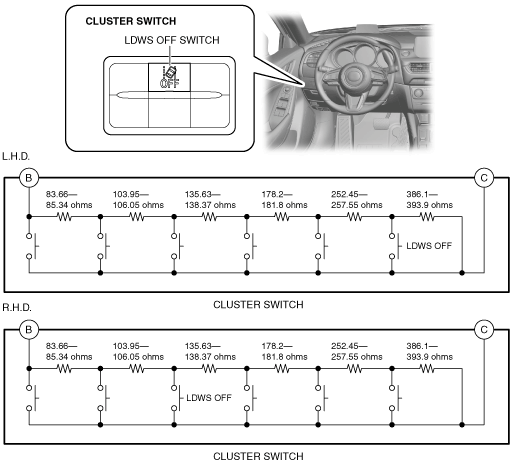

•  The LDWS off switch is built into the cluster switch.

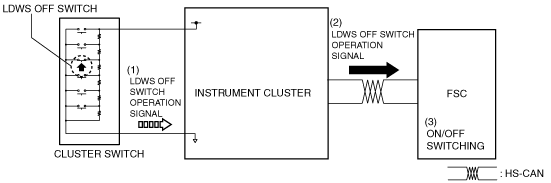

1.  When the LDWS switch operates, the LDWS OFF switch operation signal is sent to the instrument cluster.

2.  The instrument cluster determines that the switch has been operated based on the received voltage value (switch operation signal), and the LDWS OFF switch operation signal is sent to the FSC.

3.  When the FSC receives the LDWS OFF switch operation signal from the instrument cluster, it switches the LDWS on/off.

am3uun00004043

•  Not applicable
