LANE-KEEP ASSIST SYSTEM INDICATION

id151300003700


Purpose


Lane-keep assist system indication

•  The lane-keep assist system indication informs the driver of the following system conditions.
―  Operating
―  Stand-by
―  Warning
―  Malfunction


Function

•  The instrument cluster displays the lane-keep assist system indication based on the system condition display request signal sent from the forward sensing camera (FSC) via CAN communication.

Construction

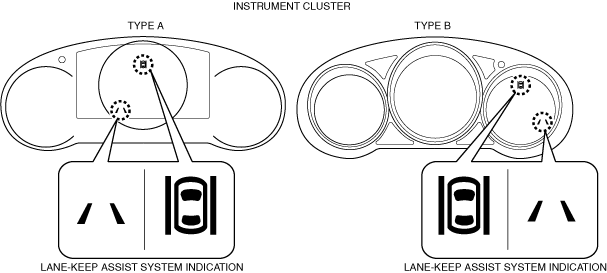

•  The lane-keep assist system indication is displayed in the multi-information display.
am6xun00004907

System conditions display table

Lane-keep assist system condition

Condition

Lane-keep assist system indication

Multi-information display indication

Active driving display indication
OFF
System off
No display
No display
No display
ON
Vehicle lane lines are recognized on both sides at a vehicle speed of approx. 60 km/h {37 mph} or more
While warning is triggered*
Vehicle speed is approx. 60 km/h {37 mph} or less
No display
Vehicle lane lines are not recognized or vehicle lane line is recognized on either left or right side at a vehicle speed of approx. 60 km/h {37 mph} or more
No display
Forward sensing camera (FSC) detects camera fogging
No display
Forward sensing camera (FSC) detects that the camera is dirty
No display
Malfunction in lane-keep assist system occurred
No display
Malfunction in forward sensing camera (FSC) occurred
No display
Driver takes his or her hands off steering wheel

*  :If the system determines that the vehicle may deviate from its lane, the color of the line on side being detected by the system changes from white to amber, and flashes.

Operation

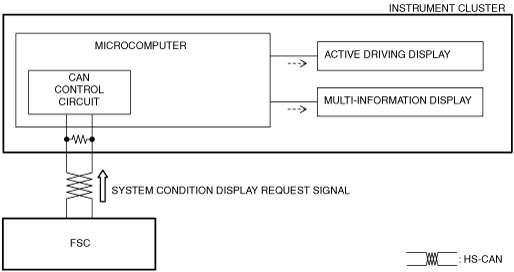

1.   The instrument cluster receives a system condition display request signal from the forward sensing camera (FSC) via CAN communication.

2.  The instrument cluster displays a lane-keep assist system indication in the multi-information display based on the system condition display request signal.

ac9uun00002529

Fail-safe

•  Function not equipped.
