ADAPTIVE LED HEADLIGHT WARNING LIGHT (AMBER)/ADAPTIVE LED HEADLIGHT WARNING INDICATION/ADAPTIVE LED HEADLIGHT INDICATOR LIGHT (GREEN)

id151300004200


Purpose


Adaptive LED headlights warning light (amber)/Adaptive LED headlights warning indication

•  Adaptive LED headlights warning light (amber)/Adaptive LED headlights warning indication warns the driver that a malfunction is occurring in the adaptive LED headlights.


Adaptive LED headlights indicator light (green)

•  The adaptive LED headlights indicator light (green) notifies the driver that the adaptive LED headlights is operating.


Function


Adaptive LED headlights warning light (amber)/Adaptive LED headlights warning indication

•  The instrument cluster turns on the adaptive LED headlights warning light (amber)/adaptive LED headlights warning indication based on the system malfunction display request signal sent from the forward sensing camera (FSC) as a CAN signal.


Adaptive LED headlights indicator light (green)

•  The instrument cluster turns the adaptive LED headlights indicator light (green) on based on the system conditions display request signal sent from the forward sensing camera (FSC) as a CAN signal.


Structure/Construction

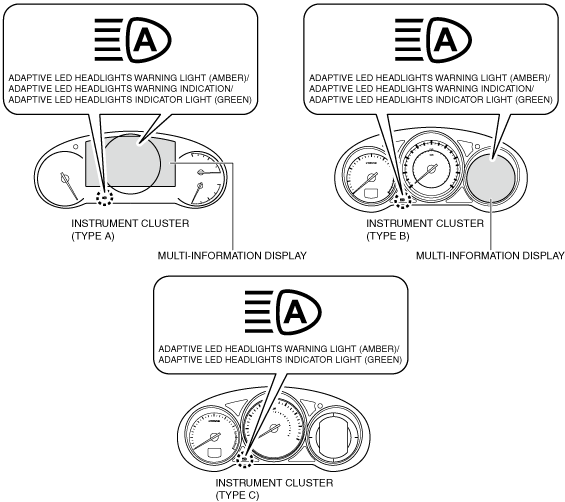

•  The adaptive LED headlights warning light (amber) and adaptive LED headlights indicator light (green) are built into the instrument cluster.
•  The adaptive LED headlights warning indication is displayed in the multi-information display. (With multi-information display)
am6zzn00005640
•  For vehicles with the center display, a warning message is indicated in the center display when the adaptive LED headlights warning light (amber)/adaptive LED headlights warning indication is turned on. For the message content and verification method, refer to the [CENTER DISPLAY]. (See CENTER DISPLAY [WITH CENTER DISPLAY].)

Operation

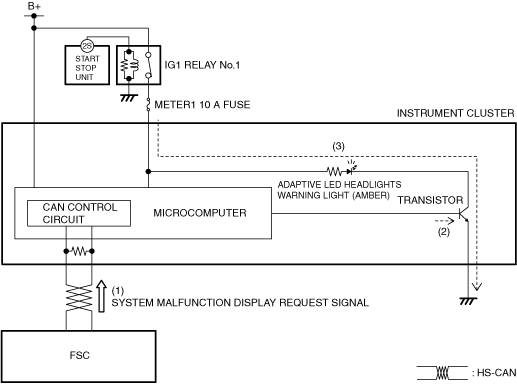

Adaptive LED headlights warning light (amber)

1.  If there is a malfunction in the adaptive LED headlights, the forward sensing camera (FSC) sends (1) a system malfunction display request signal to the instrument cluster via CAN communication.
2.  The instrument cluster turns the transistor on (2) based on the system malfunction display request signal.
3.  When the transistor turns on, a ground circuit with the adaptive LED headlights warning light (amber) is established, and the adaptive LED headlights warning light (amber) turns on (3).
am6zzn00005525


Adaptive LED headlights warning indication (with multi-information display)

1.  The instrument cluster receives (1) the system malfunction display request signal from the forward sensing camera (FSC) via CAN communication.
2.  The instrument cluster displays (2) an adaptive LED headlights warning indication in the multi-information display based on the system malfunction display request signal.
am6zzn00005641


Adaptive LED headlights indicator light (green)

1.  When the adaptive LED headlights operates, the forward sensing camera (FSC) sends (1) a system conditions display request signal to the instrument cluster via CAN communication.
2.  The instrument cluster turns the transistor on (2) based on the system conditions display request signal.
3.  When the transistor turns on, a ground circuit with the adaptive LED headlights indicator light (green) is established, and the adaptive LED headlights indicator light (green) turns on (3).
am6zzn00005524


Fail-safe

•  Not applicable
