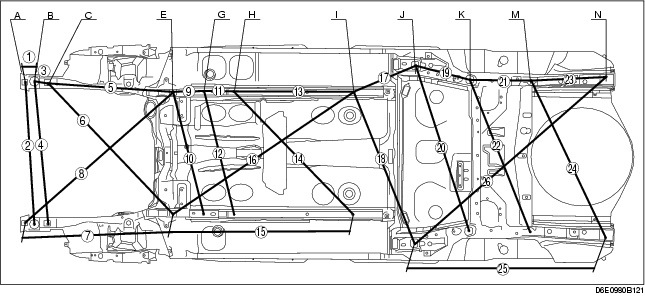

UNDERBODY STRAIGHT-LINE DIMENSIONS

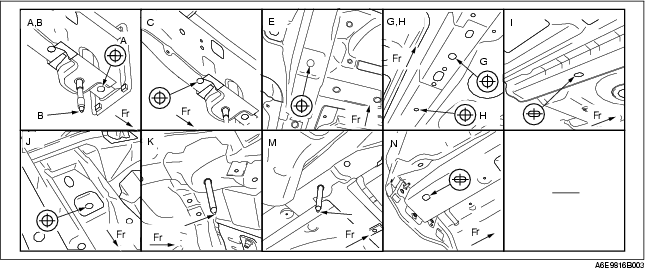

Measured location	Dimensions mm {in}
1	149 {5.87}
2	993 {39.09}
3	RH:152 {5.98}, LH:153 {6.02}
4	RH:991 {39.02}, LH:1,001 {39.41}
5	RH:924 {36.38}, LH:923 {36.34}
6	RH:1,293 {50.91}, LH:1,286 {50.63}
7	1,076 {42.36}
8	1,401 {55.16}
9	207 {8.15}
10	851 {33.50}
11	200 {7.87}
12	850 {33.46}
13	800 {31.50}
14	1,150 {45.28}
15	1,205 {47.44}
16	1,461 {57.52}
17	479 {18.86}
18	1,112 {43.78}
19	395 {15.55}
20	1,202 {47.32}
21	454 {17.87}
22	1,156 {45.51}
23	532 {20.94}
24	1,226 {48.27}
25	1,366 {53.78}
26	1,805 {71.06}
