REAR END PANEL INSTALLATION (SEDAN)


D6E098070750B02

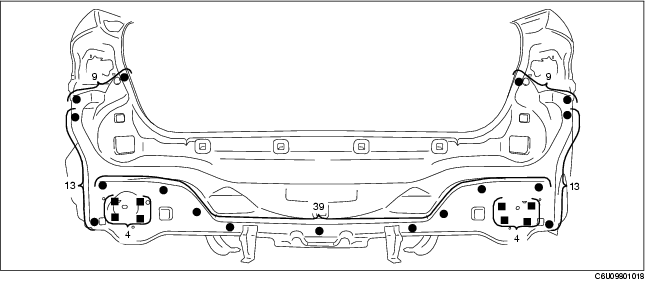

L3 Turbo

1. When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2. Drill holes for plug welds before installing new parts.

3. After temporarily installing new parts, make sure the related parts fit properly.

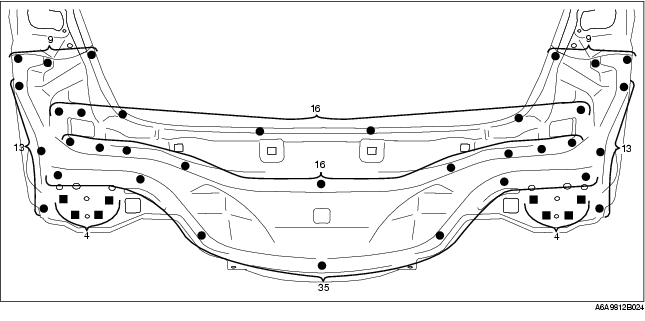

Except L3 Turbo

1. When installing new parts, position each part so that the section measurement aligns to the body dimension.

2. Drill holes for plug welds before installing new parts.

3. After temporarily installing new parts, make sure the related parts fit properly.
