JACKING POSITIONS, VEHICLE LIFT (2 SUPPORTS) AND SAFETY STAND (RIGID RACK) POSITIONS

id000000001100

Jacking Positions

Warning

• Improperly jacking a vehicle is dangerous. The vehicle can slip off the jack and cause serious injury. Use only the correct front and rear jacking points and block the wheels.

• Use safety stands to support the vehicle after it has been lifted.

2WD

Front

• At the jacking plate of the front crossmember.

Rear

• At the center of torsion beam axle.

4WD

Front

• At the jacking plate of the front crossmember.

Rear

• At the center of the rear differential.

Vehicle Lift Positions

Front and rear

Warning

• Unstably lifting a vehicle is dangerous. The vehicle can slip off the lift and cause serious injury and/or vehicle damage. Make sure that the vehicle is on the lift horizontally by adjusting the height of support at the end of the arm of the lift.

• Both sides of the vehicle, on side sills.

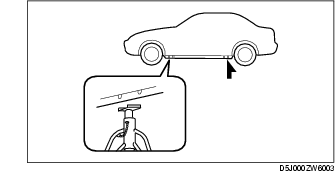

Safety Stand Positions

Front and rear

• Both sides of the vehicle, on side sills.
