ON-BOARD DIAGNOSTIC OUTLINE [L3 Turbo]
id0102b7111300
Features
To meet the EOBD regulations
• Diagnostic test modes adopted
Improved serviceability
• DTCs adopted
• KOEO/KOER self-test function adopted
• PID/DATA monitor function adopted
• Simulation test function adopted

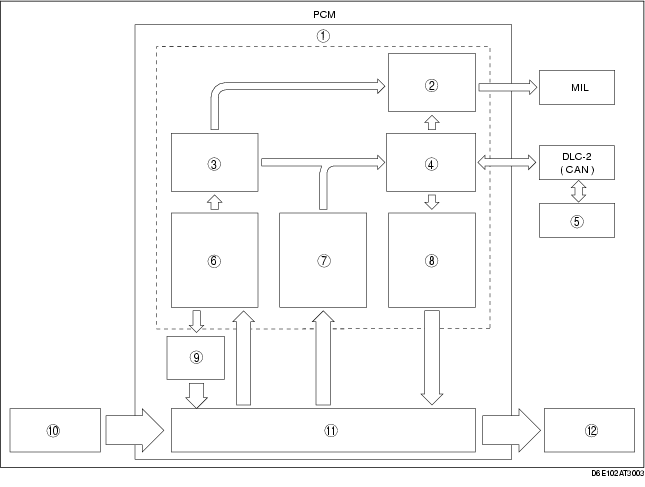

Block Diagram
.
1
OBD system
2
Malfunction indication function
3
Memory function
4
Tester communication function
5
WDS or equivalent
6
Detection function
7
PID data monitor function
8
Simulation test function
9
Fail-safe function
10
Input device
11
Engine control system
12
Output device
