OIL CONTROL VALVE (OCV) CONSTRUCTION [LF, L3]
id0110a11024a2

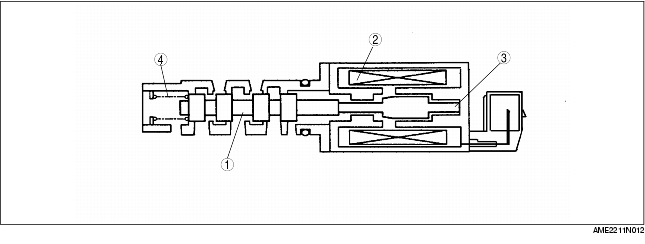

• The oil control valve (OCV) consists of a spool valve that switches the passages for engine oil, a coil that moves the spool valve, a plunger, and a return spring.
.
|
1
|
Spool valve
|
|
2
|
Coil
|
|
3
|
Plunger
|
|
4
|
Return spring
|
