PISTON, PISTON RING, PISTON PIN CONSTRUCTION [L3 Turbo]

id0110b3100600

• The piston head has a concave recess to accommodate the turbocharger.
• A superior quality, heat resistant, highly-conductive aluminum alloy has been adopted for the pistons.
• Offset pistons have been adopted to reduce piston slapping.
• The piston has an arrow mark, located on top of the piston, pointing to the front side in order to prevent improper installation.
• A bushing is installed on the small end of the connecting rod for a full-floating connection of the piston, piston pin, and connecting rod.
• The construction of the piston skirt is asymmetric on the left and right side to prevent interference between the piston and oil jet.

Piston specification

Item

L3 Turbo

Outer diameter
(mm {in})
87.465-87.495 {3.4435-3.4446}
Offset
(mm {in})
0.8 {0.04}
Compression height: A
(mm {in})
32.5{1.2795}
Total height: B
(mm {in})
55.0{2.1654}

.

1
Piston side view
2
Offset
3
Outer diameter
4
Engine front side
5
Piston top view
6
Assembly direction mark
7
Valve recess

.

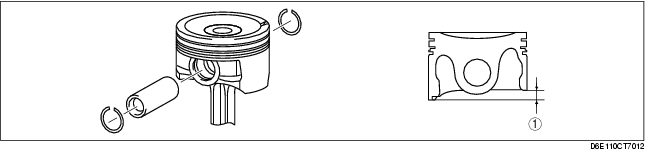

1
Oil jet release width
