CONNECTING ROD, CONNECTING ROD BEARING CONSTRUCTION [MZR-CD (RF Turbo)]

id0110f1100700

Structure

• Connecting rods are made of carbon steel.

• Dowel pins are used to position the rod cap to the connecting rod.

• Connecting rod caps are secured with plastic region bolts.

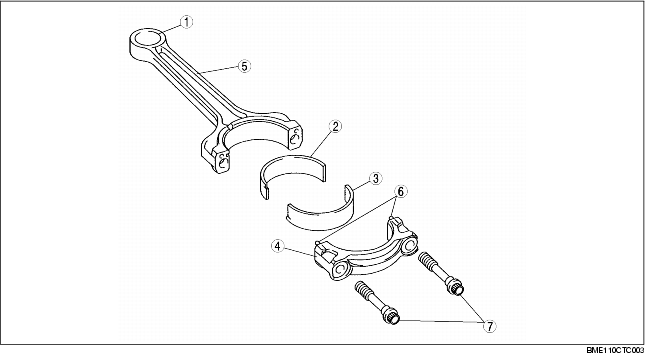

1	Bush
2	Connecting rod upper bearing
3	Connecting rod lower bearing
4	Connecting rod cap
5	Connecting rod
6	Dowel pin
7	Connecting rod cap bolt (plastic region bolts)
