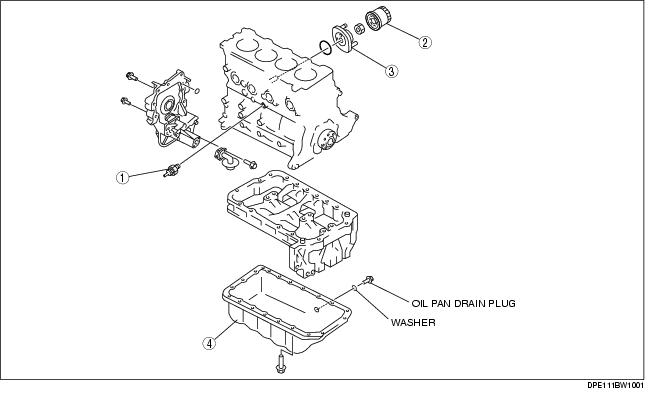

LUBRICATION SYSTEM LOCATION INDEX [MZR-CD (RF Turbo)]

id0111f1800100


1	Oil pressure switch (See OIL PRESSURE INSPECTION [MZR-CD (RF Turbo)].)
2	Oil filter (See OIL FILTER REPLACEMENT [MZR-CD (RF Turbo)].)
3	Oil cooler (See OIL COOLER REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].)
4	Oil pan (See OIL PAN REMOVAL/INSTALLATION [MZR-CD (RF Turbo)].)
