THERMOSTAT CONSTRUCTION/OPERATION [L8, LF, L3, L3 Turbo]
id0112b2100700
Construction
• A wax-type thermostat with a jiggle-valve has been adopted.
Operation
• When the engine coolant temperature reaches 80-84 °C {176-183 °F}, the valve starts opening to allow engine coolant to flow from the radiator stabilizing the engine coolant temperature. When the engine coolant temperature decreases to approx. 75 °C {167 °F}, the valve closes to stop the engine coolant flow from the radiator.
|

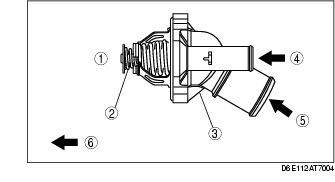

1
|
Engine side
|
|
2
|
Thermostat
|
|
3
|
Thermostat cover
|
|
4
|
From heater hose
|
|
5
|
From lower radiator hose
|
|
6
|
Coolant flow direction
|
