WASTEGATE CONTROL SOLENOID VALVE CONSTRUCTION/OPERATION [L3 Turbo]
id0113b5101300
Construction
• Mainly composed of the solenoid coil, spring, and plunger.
Operation
• During energization, the valve opens and performs linear adjustment of the pressure applied to the wastegate actuator releasing it through the air hose.
|

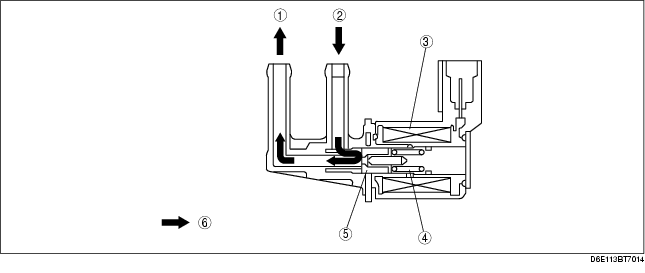

1
|
To air hose
|
|
2
|
From wastegate actuator
|
|
3
|
Coil
|
|
4
|
Spring
|
|
5
|
Plunger
|
|
6
|
Air flow
|
