ACCELERATOR PEDAL REMOVAL/INSTALLATION [L3 Turbo]

id0113b5801400

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

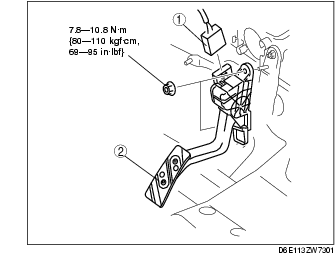

L.H.D.

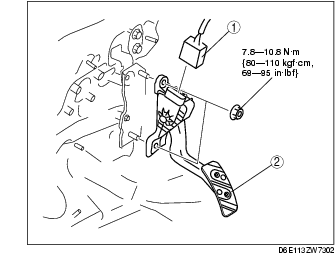

R.H.D.


1	Connector
2	Accelerator pedal
