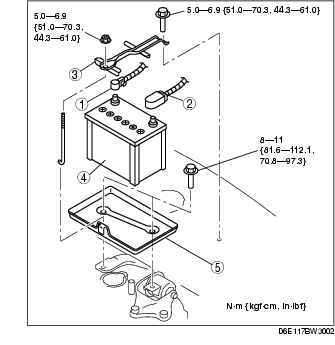

BATTERY REMOVAL/INSTALLATION [MZR-CD (RF Turbo)]
id0117f1800500
1. Remove in the order indicated in the table.
1
Negative battery cable
2
Positive battery cable
3
Battery clamp
4
Battery
5
Battery tray
2. Install in the reverse order of removal.
