IGNITION COIL CONSTRUCTION/OPERATION [L8, LF, L3, L3 Turbo]
id0118a4100300
Construction
• Direct ignition coils installed directly to each spark plug have been adopted. By adopting direct ignition coils, high-tension leads have been eliminated in order to simplify the parts of the ignition system, preventing voltage reduction, and improving the firing efficiency.
• Independent firing control has been adopted to eliminate firing without spark, increasing firing energy.
• The direct ignition coil consists of an ignition coil, ignition coil connector, and boot area, which has the same function as the current high-tension lead.
• The igniter has been integrated into each ignition coil.
Operation
• The firing timing of the coil is controlled by the PCM for optimum ignition timing control.
.
|

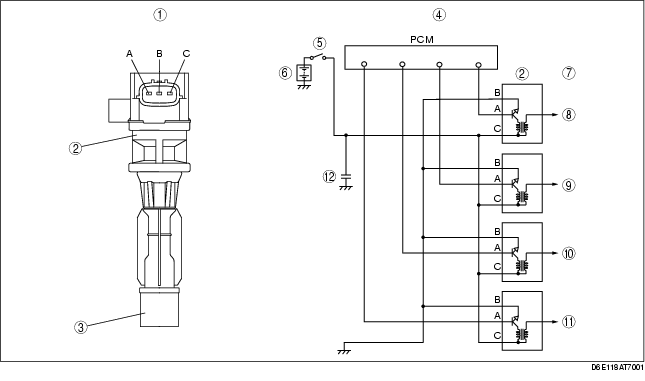

1
|
Ignition coil external view
|
|
2
|
Ignition coil
|
|
3
|
Boot
|
|
4
|
Ignition coil electrical system wiring diagram
|
|
5
|
Ignition switch
|
|
6
|
Battery
|
|
7
|
Cylinder number
|
|
8
|
No. 1
|
|
9
|
No. 2
|
|
10
|
No. 3
|
|
11
|
No. 4
|
|
12
|
Condenser
|
Terminal layout
|
Terminal
|
Signal
|
|
Three terminals
|
A
|
Ignition coil control signal
|
|
B
|
Ground
|
|
C
|
Power supply
|
