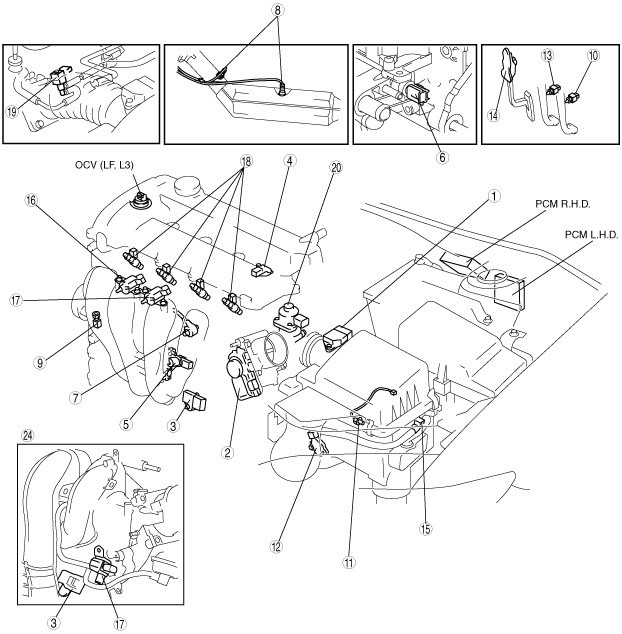

ENGINE CONTROL SYSTEM STRUCTURAL VIEW [L8, LF, L3]
id0140a5100200
d6e116at3004
|
|
1
|
MAF/IAT sensor
|
|
2
|
TP sensor, throttle actuator
|
|
3
|
MAP sensor
|
|
4
|
CMP sensor
|
|
5
|
CKP sensor
|
|
6
|
ECT sensor
|
|
7
|
Knock sensor
|
|
8
|
A/F sensor, HO2S
|
|
9
|
P/S pressure switch
|
|
10
|
Clutch switch (MTX)
|
|
11
|
Neutral switch (MTX)
|
|
12
|
TR switch (ATX)
|
|
13
|
Brake switch
|
|
14
|
APP sensor
|
|
15
|
VAD solenoid valve (L3)
|
|
16
|
Variable intake air solenoid valve (LF, L3)
|
|
17
|
Variable tumble solenoid valve
|
|
18
|
Fuel injector
|
|
19
|
Purge valve
|
|
20
|
EGR valve
|
