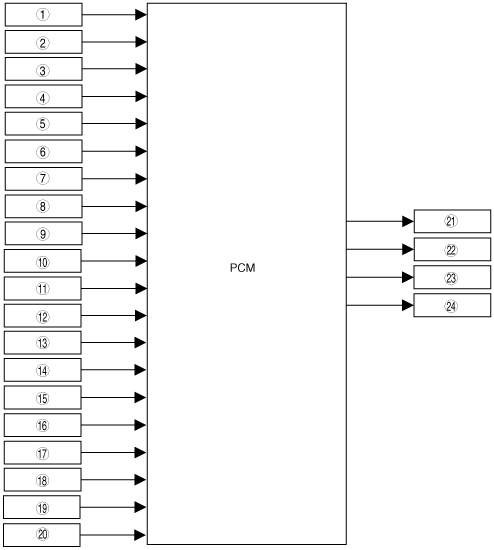

DIESEL PARTICULATE FILTER REGENERATION CONTROL BLOCK DIAGRAM [MZR-CD (RF Turbo)]


id0140f1222900

g6e140ct2014

1
Clutch switch
2
Neutral switch
3
PSP switch
4
APP sensor
5
MAF/IAT sensor
6
IAT sensor No.2
7
ECT sensor
8
BARO sensor (integrated in PCM)
9
Boost sensor
10
Fuel pressure sensor
11
CKP sensor
12
Vehicle speed signal
13
Exhaust gas pressure sensor
14
Exhaust gas pressure correction temperature sensor
15
Exhaust gas temperature sensor (upper)
16
Exhaust gas temperature sensor (middle)
17
Exhaust gas temperature sensor (lower)
18
Intake shutter valve position sensor
19
EGR valve position sensor
20
A/F sensor
21
Fuel injector
22
EGR valve
23
Intake shutter valve
24
Glow plug relay
