INTAKE SHUTTER VALVE POSITION SENSOR CONSTRUCTION/OPERATION [MZR-CD (RF Turbo)]
id0140f1223800

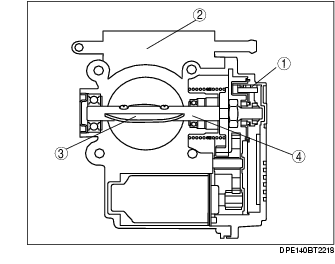

• Consists of an integrated intake shutter valve position sensor and intake shutter valve.
• Installed to the valve shaft so that it is linked to the opening and closing of the intake shutter valve.
|
1
|
Intake shutter valve position sensor
|
|
2
|
Intake shutter valve body
|
|
3
|
Shutter valve
|
|
4
|
Shutter valve shaft
|

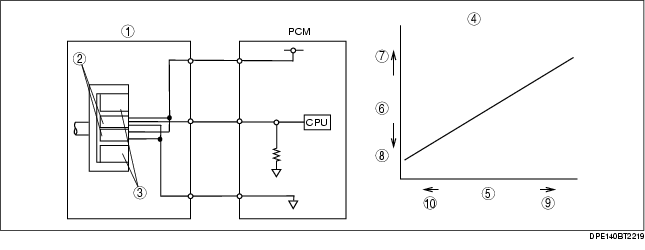

• Hall element sensor has been adopted for the detecting element. With the adoption of a non-contact type sensor, durability is improved.
|
1
|
Intake shutter valve position sensor
|
|
2
|
Hall element
|
|
3
|
Magnet
|
|
4
|
Intake shutter valve position sensor output voltage characteristic
|
|
5
|
Shutter valve closing angle
|
|
6
|
Output voltage
|
|
7
|
High
|
|
8
|
Low
|
|
9
|
Open
|
|
10
|
Closed
|
