REAR SUSPENSION DESCRIPTION
id021400112100
Camber Control
• The camber change during a suspension stroke of the E-type multi-link rear suspension is properly controlled by optimizing the ratio of the rear lower arm and the rear upper arm.

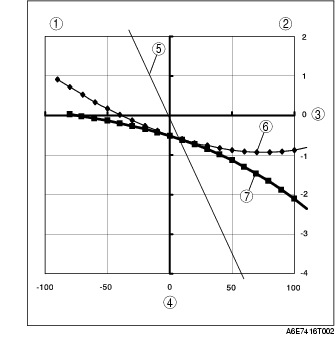

Camber control characteristic comparison
.
|
1
|
Rebound stroke area
|
|
2
|
Bump stroke area
|
|
3
|
Camber angle (°)
|
|
4
|
Wheel stroke (mm)
|
|
5
|
Vehicle roll angle (°)
|
|
6
|
Strut rear suspension (reference)
|
|
7
|
E-type multi-link rear suspension
|
Camber Adjustment

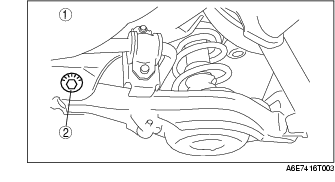

• The camber is adjusted by turning the adjusting cam on the rear lower arm.
• Turning the cam one graduation changes the camber angle approx. 0°20'.
|
1
|
Left rear side
|
|
2
|
Adjusting cam
|
Toe Adjustment
• The turnbuckle mechanism for toe-in adjustment is located in the center of rear lateral link.
• By rotating the adjusting rod, the amount of toe can be changed. (One turn of the adjusting rod changes the toe approx. 0°43'.)
|
1
|
Front
|
|
2
|
Left threaded
|
|
3
|
Right threaded
|
|
4
|
Adjusting rod
|
|
5
|
Axle side
|
|
6
|
For toe-out
|
|
7
|
For toe-in
|
