SUPER-LSD CONSTRUCTION [L3 Turbo]
id0314001004a4

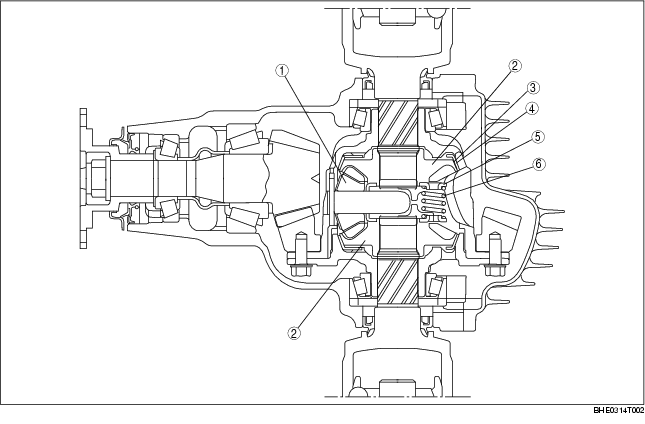

• Inside the super-LSD, taper rings that are fixed to the differential gear case have been placed between the differential gear case and the side gears. Additionally, a cone is provided around the outer surface of the side gear.
• Springs and retainers are positioned between the right and left side gears to provide initial torque to the taper rings.
.
|
1
|
Pinion gear
|
|
2
|
Side gear
|
|
3
|
Cone
|
|
4
|
Taper ring
|
|
5
|
Retainer
|
|
6
|
Spring
|
