ELECTRONIC CONTROL COUPLING CONSTRUCTION
id031800166500

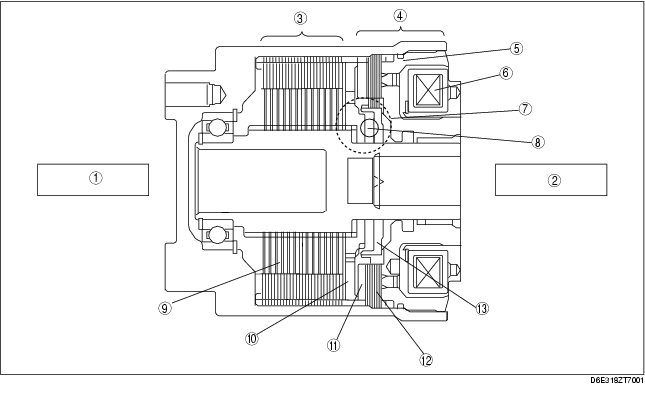

• The electronic control coupling basically consists of an electromagnetic clutch, a cam mechanism and a torque transmission system.
• The electromagnetic clutch consists of a 4WD solenoid (electromagnetic coil), rear-housing that forms a magnetic path, pilot clutch, and armature. The cam mechanism consists of a pilot cam, balls, and main cam. The torque transmission system consists of a main clutch and hydraulic oil (ATF).
.
|
1
|
Front wheel side
|
|
2
|
Rear wheel side
|
|
3
|
Torque transmission system
|
|
4
|
Electromagnetic clutch
|
|
5
|
Rear housing
|
|
6
|
4WD solenoid (Electromagnetic coil)
|
|
7
|
Cam mechanism
|
|
8
|
Ball
|
|
9
|
Main clutch
|
|
10
|
Main cam
|
|
11
|
Armature
|
|
12
|
Pilot clutch
|
|
13
|
Pilot cam
|
