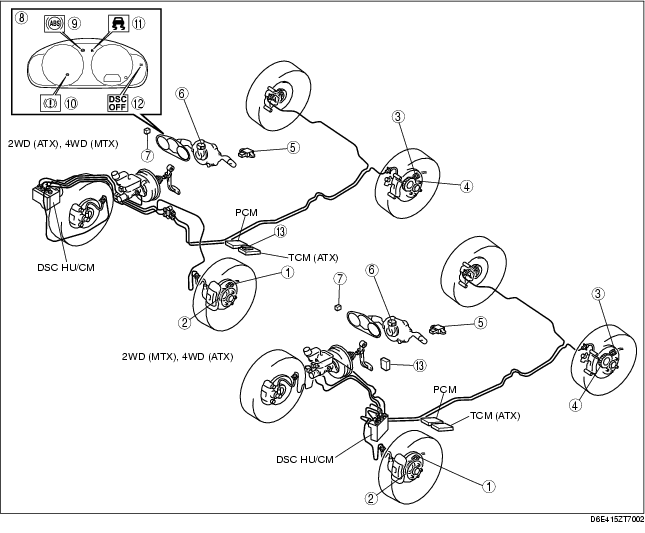

DYNAMIC STABILITY CONTROL (DSC) STRUCTURAL VIEW
id041500100400
L.H.D.
.
1
Front ABS wheel-speed sensor
2
Front ABS sensor rotor
3
Rear ABS wheel-speed sensor
4
Rear ABS sensor rotor
5
Combined sensor
6
Steering angle sensor
7
DSC OFF switch
8
Instrument cluster
9
ABS warning light
10
Brake system warning light
11
DSC indicator light
12
DSC OFF light
13
4WD control module (4WD)
R.H.D.
.
1
Front ABS wheel-speed sensor
2
Front ABS sensor rotor
3
Rear ABS wheel-speed sensor
4
Rear ABS sensor rotor
5
Combined sensor
6
Steering angle sensor
7
DSC OFF switch
8
Instrument cluster
9
ABS warning light
10
Brake system warning light
11
DSC indicator light
12
DSC OFF light
13
4WD control module (4WD)
