DYNAMIC STABILITY CONTROL (DSC) SYSTEM DIAGRAM
id041500644100

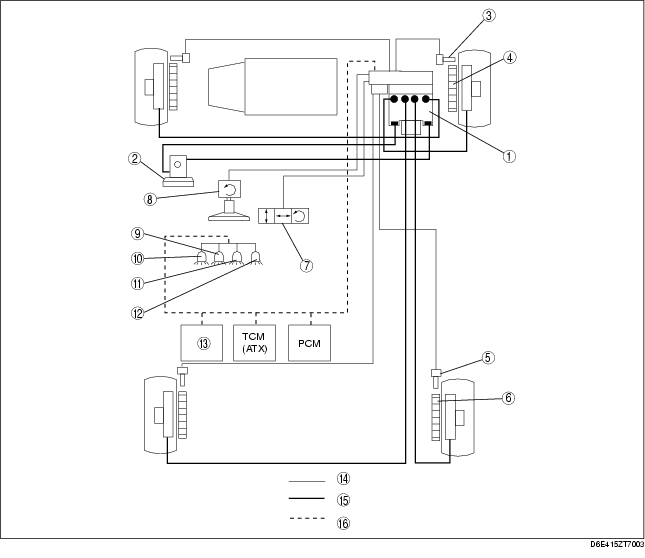

2WD (ATX), 4WD (MTX)
.
1
DSC HU/CM (built-in brake fluid pressure sensor)
2
Master cylinder
3
Front ABS wheel-speed sensor
4
Front ABS sensor rotor
5
Rear ABS wheel-speed sensor
6
Rear ABS sensor rotor
7
Combined sensor
8
Steering angle sensor
9
DSC indicator light
10
DSC OFF light
11
Brake system warning light
12
ABS warning light
13
4WD control module (4WD)
14
Electric signal
15
Brake fluid
16
CAN communication line

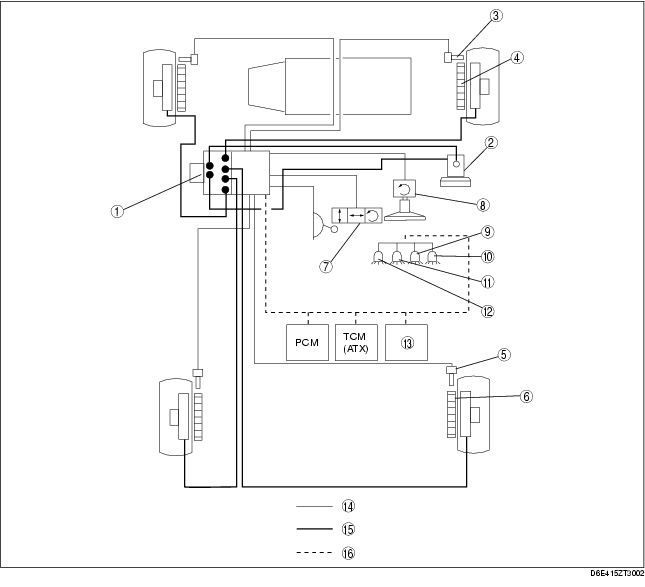

2WD (MTX), 4WD (ATX)
.
1
DSC HU/CM (built-in brake fluid pressure sensor)
2
Master cylinder
3
Front ABS wheel-speed sensor
4
Front ABS sensor rotor
5
Rear ABS wheel-speed sensor
6
Rear ABS sensor rotor
7
Combined sensor
8
Steering angle sensor
9
DSC indicator light
10
DSC OFF light
11
Brake system warning light
12
ABS warning light
13
4WD control module (4WD)
14
Electric signal
15
Brake fluid
16
CAN communication line
