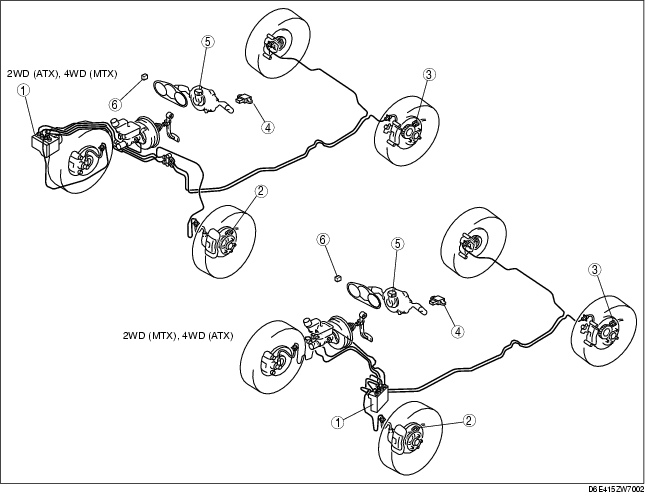

L.H.D.
.
|
1
|
DSC HU/CM
(See DSC SYSTEM WIRING DIAGRAM.)
(SeeDSC SYSTEM INSPECTION.)
(SeeDSC HU/CM CONFIGURATION.)
(SeeDSC HU/CM INSPECTION.)
|
|
2
|
Front ABS wheel-speed sensor
|
|
3
|
Rear ABS wheel-speed sensor
|
|
4
|
Combined sensor
|
|
5
|
Steering angle sensor
|
|
6
|
DSC OFF switch
|

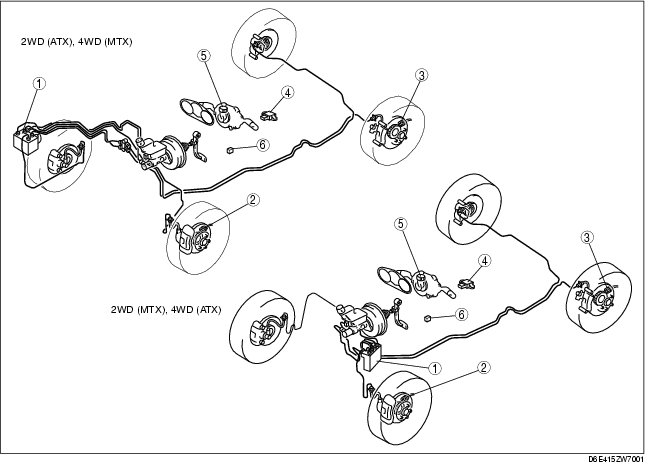

R.H.D.
.
|
1
|
DSC HU/CM
(See DSC SYSTEM WIRING DIAGRAM.)
(SeeDSC SYSTEM INSPECTION.)
(SeeDSC HU/CM CONFIGURATION.)
(SeeDSC HU/CM INSPECTION.)
|
|
2
|
Front ABS wheel-speed sensor
|
|
3
|
Rear ABS wheel-speed sensor
|
|
4
|
Combined sensor
|
|
5
|
Steering angle sensor
|
|
6
|
DSC OFF switch
|
