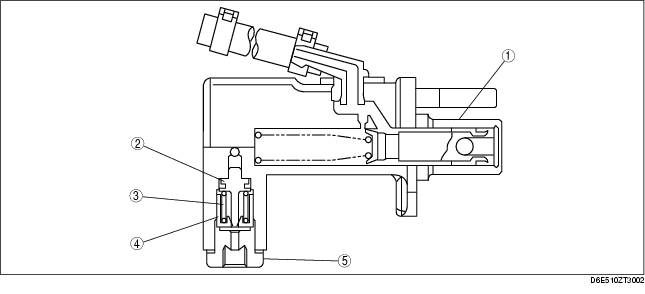

CLUTCH MASTER CYLINDER CONSTRUCTION [A26M-R, A26MX-R]
id0510002107b0
• A clutch master cylinder with a built-in one-way valve has been adopted preventing sudden clutch engagement and ensuring smooth startability.
.
1
Clutch master cylinder
2
One-way valve pin
3
One-way valve spring
4
One-way valve piston
5
Joint bolt
