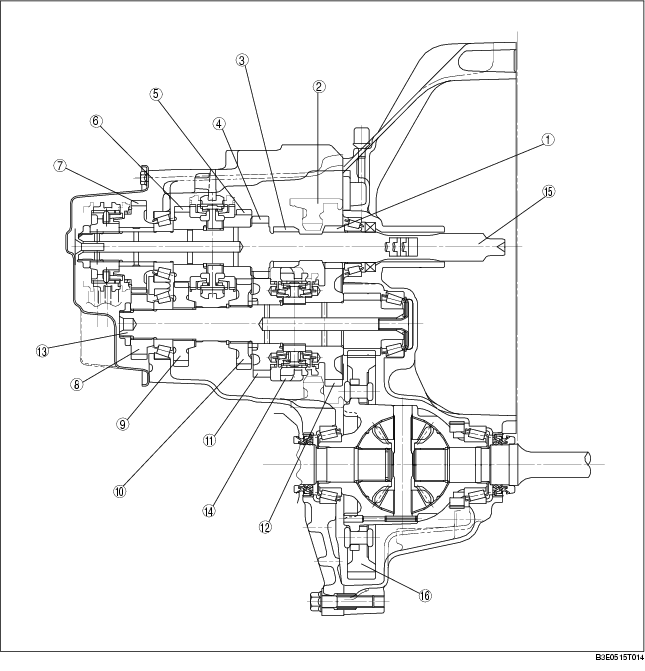

MANUAL TRANSAXLE CROSS-SECTIONAL VIEW [G35M-R]

id0515b1100700

.

1
1st gear
2
Reverse idler gear
3
Reverse gear
4
2nd gear
5
3rd gear
6
4th gear
7
5th gear
8
Secondary 5th gear
9
Secondary 4th gear
10
Secondary 3rd gear
11
Secondary 2nd gear
12
Secondary 1st gear
13
Secondary shaft
14
Clutch hub sleeve (reverse gear)
15
Primary shaft
16
Differential gear

.

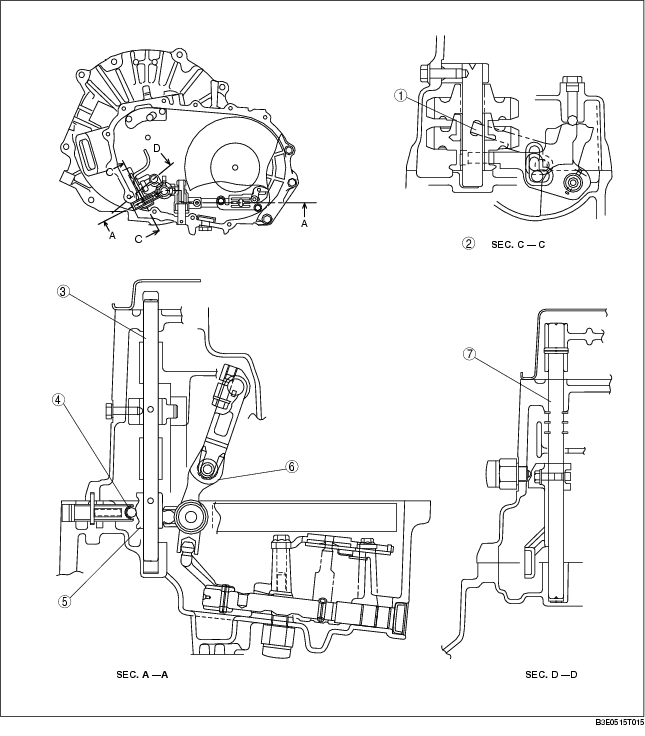

1
Reverse lever
2
Reverse link parts
3
Control rod
4
Detent ball
5
Control rod end
6
Crank lever
7
Shift rod
