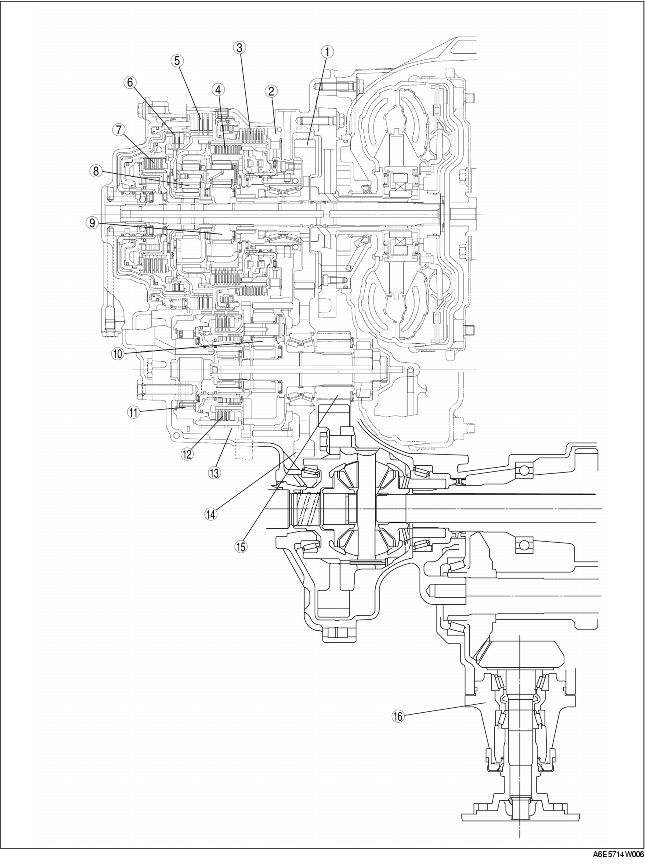

AUTOMATIC TRANSAXLE CROSS-SECTIONAL VIEW [JA5AX-EL]
id051705000300
.
|
1
|
Output gear
|
|
2
|
Low one-way clutch
|
|
3
|
Low and reverse brake
|
|
4
|
Low clutch
|
|
5
|
2-4 brake
|
|
6
|
Reverse clutch
|
|
7
|
High clutch
|
|
8
|
Front planetary gear
|
|
9
|
Rear planetary gear
|
|
10
|
Reduction planetary gear
|
|
11
|
Reduction one-way clutch
|
|
12
|
Direct clutch
|
|
13
|
Reduction brake
|
|
14
|
Idler gear
|
|
15
|
Reduction gear
|
|
16
|
Transfer
|
