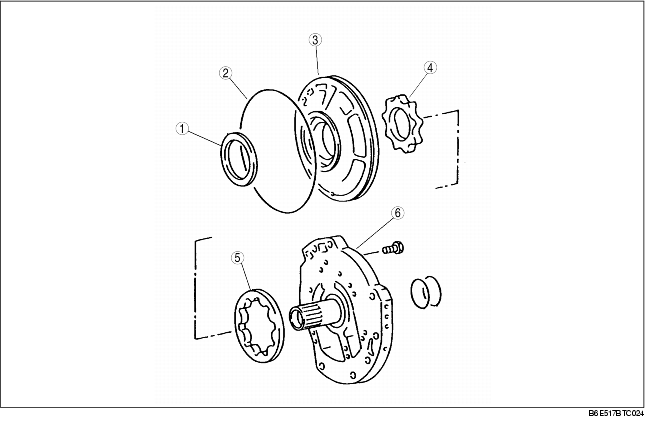

OIL PUMP OUTLINE [JA5AX-EL]
id051705003000
• The light-weight, compact, and quiet trochoid type oil pump reduces pump driving torque.
• The direct drive type oil pump is placed behind the torque converter.
.
|
1
|
Oil seal
|
|
2
|
O-ring
|
|
3
|
Oil pump housing
|
|
4
|
Inner rotor
|
|
5
|
Outer rotor
|
|
6
|
Oil pump cover
|
