TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR CONSTRUCTION/OPERATION [JA5AX-EL]

id051705109000

• The TFT sensor is a thermistor type and the resistance changes according to the ATF temperature.

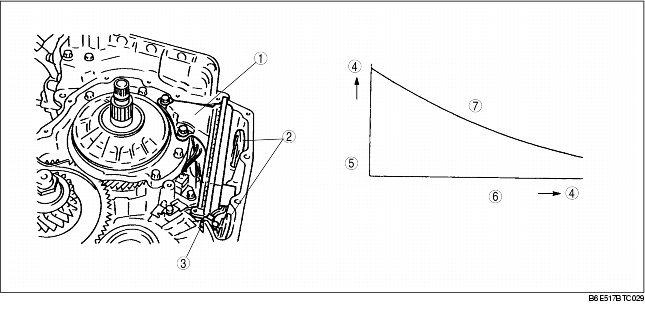

• The characteristic of the resistance is as shown in the figure below.

• The TFT sensor is integrated with the connector.


1	Oil strainer
2	Magnets
3	TFT sensor
4	Increases
5	Resistance (ohm)
6	ATF temperature
7	Characteristic of TFT sensor
