VEHICLE SPEEDOMETER SENSOR CONSTRUCTION/OPERATION [JA5AX-EL]
id051705303500

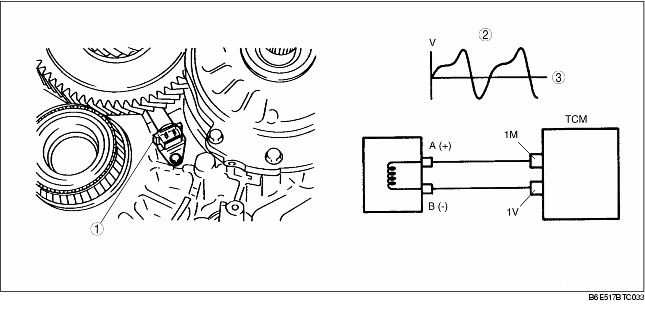

• The magnetic pickup type of vehicle speedometer sensor is mounted in the transaxle case, next to the parking gear. It generates a 18-pulse signal for each rotation of the parking gear, and sends this signal to the TCM.
.
|
1
|
Vehicle speedometer sensor
|
|
2
|
Input wave form
|
|
3
|
Time
|
