TRANSAXLE RANGE (TR) SWITCH CONSTRUCTION/OPERATION [FS5A-EL]
id051721109200

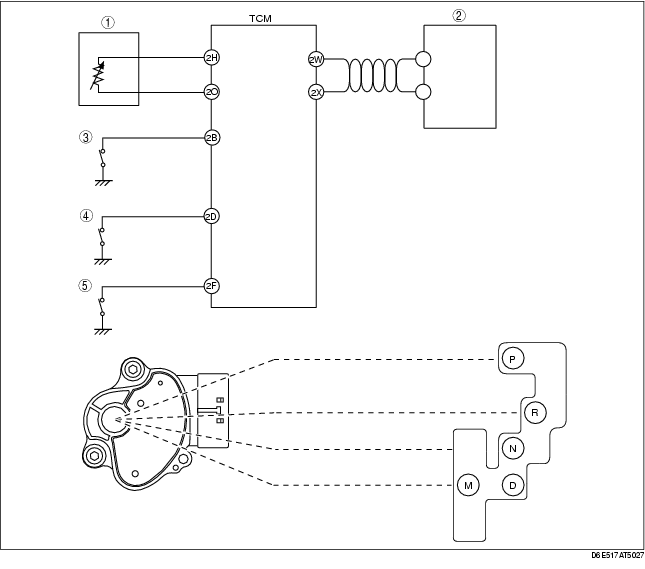

• A variable resistor type switch has been adopted for the transaxle range switch.
• Because the transaxle range switch and the selector lever are connected by the selector cable, the transaxle range switch indicates a specified resistance according to selector lever operation and from this the TCM determines the selector lever position. The corresponding signal are sent from the TCM to other related parts.
.
|
1
|
TR switch
|
|
2
|
Instrument cluster
|
|
3
|
M range switch
|
|
4
|
Up switch
|
|
5
|
Down switch
|
