AIR FILTER REMOVAL/INSTALLATION


id071100800700

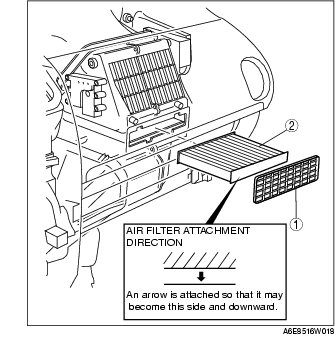

1. Remove the glove compartment.

2. Remove in the order indicated in the table.

1
Air filter cover
2
Air filter

3. Install in the reverse order of removal.
