POWER MOS FET FUNCTION
id074000117300
Function
• Controls the supply voltage to the blower motor according to the gate voltage sent from the climate control unit and adjusts the rotation speed (airflow volume).
|
1
|
Power MOS FET
|
|
2
|
Blower relay
|
|
3
|
Blower motor
|
|
4
|
Gate voltage
|
|
5
|
Climate control unit
|

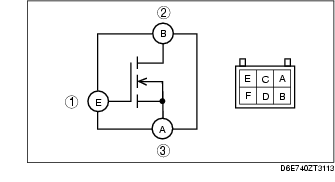

Construction/Operation
• There are three electrodes: source, gate, and drain electrodes.
• The resistance between terminals B and A (between drain and source) changes according to the voltage (gate voltage) applied to terminal E (gate).
• When the gate voltage increases, the resistance between terminals B and A decreases, allowing the current to flow easily.
|
1
|
Small current
|
|
2
|
Low gate voltage
|
|
3
|
Large current
|
|
4
|
High gate voltage
|
