AIR INTAKE ACTUATOR INSPECTION

id074000801500

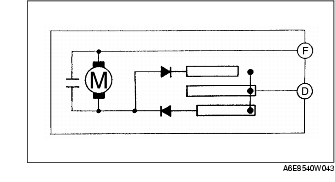

1. Connect battery positive voltage to terminal D or F and ground to terminal F or D of the air intake actuator.

2. Verify that the air intake actuator operates as shown below.

• If not as specified, replace the air intake actuator.

Connection

Movement

B+

GND

D
F
RECIRCULATE→FRESH
F
D
FRESH→RECIRCULATE
