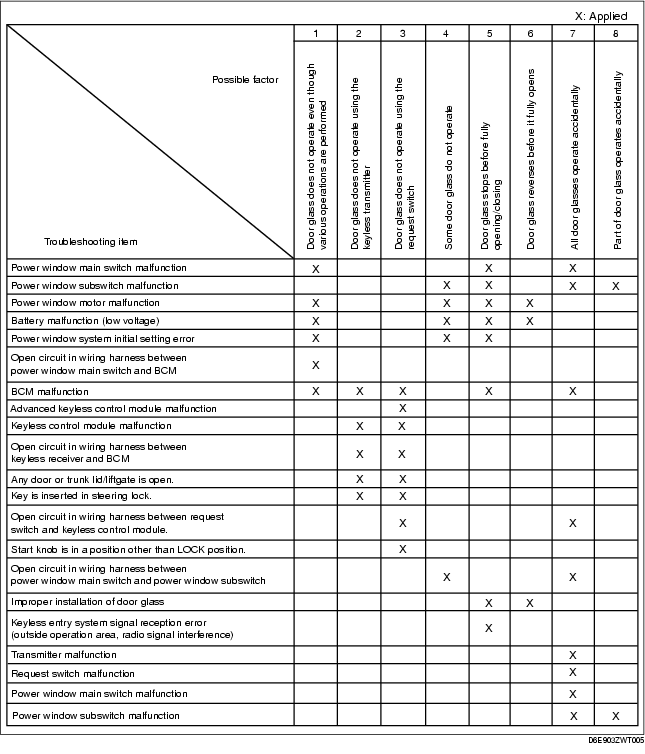

QUICK DIAGNOSTIC CHART

Note

• The exterior open/close function does not operate when the following conditions are met.

- Any door or trunk lid/liftgate is open.

- The key is inserted in the steering lock.

- The start knob is not in the LOCK position.

• The auto-open/close function (the exterior open/close function) does not operate if the power window system initial setting procedure has been reset.

• Depending on the temperature and battery conditions, the window may reverse on rare occasions.
