CABIN CONSTRUCTIOIN

id091000100700

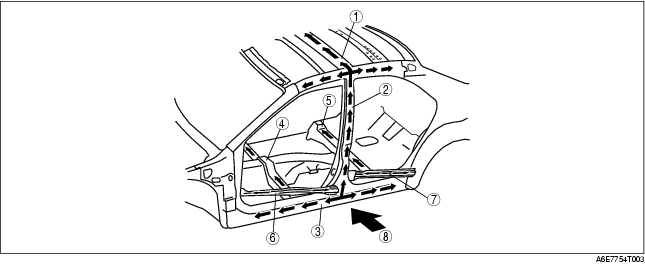

• The floor, the side frame and the roof form three rigid, H-shaped frames (triple-H structure) that resist impact forces in the event of a side collision.

• Handling stability is improved by preventing body torsion.


1	Roof reinforcement
2	B-pillar
3	Side sill
4	Crossmember No. 2
5	Crossmember No. 3
6	Front door impact bar
7	Rear door impact bar
8	Collision energy
