POWER WINDOW MOTOR CONSTRUCTION/OPERATION
id091200103500

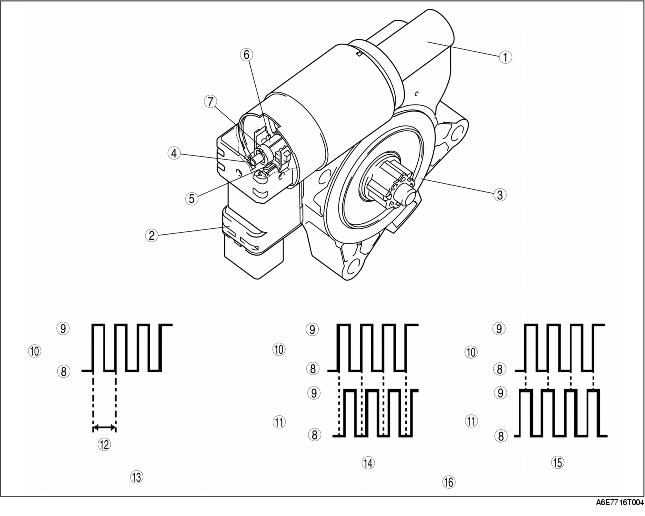

• The power window motor consists of a motor, connector and gear.
• Two Hall effect switches are set in the connector.
• The Hall effect switch utilizes magnets set on a rotating axis to sense the power window motor rotation, and outputs a synchronized pulse to the power window main switch.
• Hall effect switch 1 outputs one pulse cycle for each rotation of the power window motor axle. Accordingly, the power window main switch detects the rotational speed of the power window motor.
• The power window main switch detects the rotational direction of the power window motor by the difference between high and low pulse points from each Hall effect switch 1 and 2.
.
|
1
|
Motor
|
|
2
|
Connector
|
|
3
|
Gear
|
|
4
|
Hall effect switch 1
|
|
5
|
Hall effect switch 2
|
|
6
|
Shaft
|
|
7
|
Magnet
|
|
8
|
Low
|
|
9
|
High
|
|
10
|
Pulse (Hall effect switch 1)
|
|
11
|
Pulse (Hall effect switch 2)
|
|
12
|
One revolution of power window motor
|
|
13
|
Detection of window movement distance
|
|
14
|
Up
|
|
15
|
Down
|
|
16
|
Detection of window movement direction
|
