SEAT BACK STRIKER REMOVAL/INSTALLATION


id091300425500

1. Remove the tire house trim.

2. Remove the trunk side upper trim and trunk side lower trim.

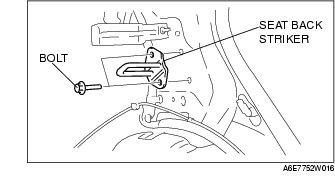

3. Remove the bolts.

4. Remove the seat back striker.

5. Install in the reverse order of removal.
