RECLINER MOTOR INSPECTION

id091300801000

1. Disconnect the recliner motor connector.

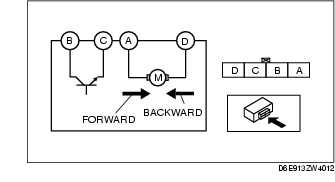

2. Inspect the recliner motor operation when B+ is applied to the terminal as shown.

• If not as specified, replace the seat cushion frame.

Motor operation

Connection

B+

GND

Forward
A
D
Backward
D
A

3. Connect battery positive voltage to front tilt motor terminal B and connect terminal C to ground.

4. Operate the front tilt motor and measure the voltage at terminals B and C.

• If there is any malfunction, replace the recliner motor.
