1. Disconnect the negative battery cable.
2. Turn the seaming welt and weatherstrip over.
3. Remove the sunroof seaming welt.
4. Remove the A-pillar trims.(See A-PILLAR TRIM REMOVAL.)
5. Remove the B-pillar upper trims.(See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
6. Remove the C-pillar trims.(See C-PILLAR TRIM REMOVAL/INSTALLATION [4SD, 5HB].)(See C-PILLAR TRIM REMOVAL/INSTALLATION [WGN].)
7. Remove the D-pillar trims (WGN).(See D-PILLAR TRIM REMOVAL/INSTALLATION [WGN].)
8. Remove the front map light.(See FRONT MAP LIGHT REMOVAL/INSTALLATION.)
9. Remove the rear map light.(See REAR MAP LIGHT REMOVAL/INSTALLATION.)
10. Remove the cargo compartment light (WGN).(See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION [WGN].)
11. Remove the sunvisors.(See (SUNVISOR REMOVAL/INSTALLATION.)
12. Remove the assist handle.(See ASSIST HANDLE REMOVAL/INSTALLATION.)
13. Remove the net anchor (WGN).
14. Remove the headliner.(See HEADLINER REMOVAL/INSTALLATION [4SD, 5HB].)(See HEADLINER REMOVAL/INSTALLATION [WGN].)
15. Remove the glass panel.(See GLASS PANEL REMOVAL/INSTALLATION.)
16. Disconnect the front and rear drain hose from the sunroof frame.

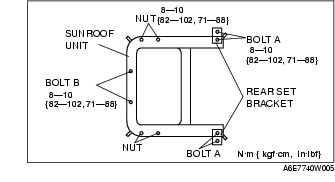

17. Remove the bolt A, and then remove the rear set bracket.
18. Remove the bolt B and nuts, and then remove the sunroof unit.
19. Install in the reverse order of removal.
20. Adjust the glass panel. (See GLASS PANEL ADJUSTMENT.)
