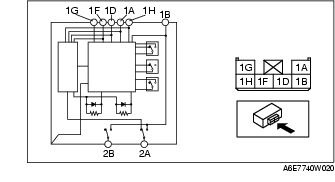

1. Apply battery positive voltage to the sunroof motor terminals and inspect the operation of the sunroof motor.
|
Connection
|
Motor operation
|
|
|---|---|---|
|
2A
|
2B
|
|
|
B+
|
GND
|
Turn left (Slide close/Tilt up)
|
|
GND
|
B+
|
Turn right (Slide open/Tilt down)
|

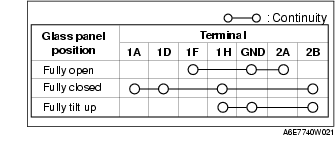

1. Inspect for continuity between the sunroof motor terminals using an ohmmeter.
