FRONT BELTLINE MOLDING REMOVAL

Note

• When removing the front beltline molding, the clip may be damaged. If the clip is damaged, replace it with a new one.

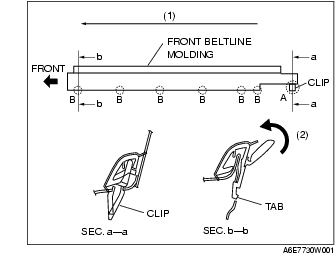

1. Pull the A section upward and remove the clip.

2. Rotate the B section of the front beltline molding in direction (2), along the direction (1) shown in the figure and remove it from the body.
