SIDE PANEL REMOVAL/INSTALLATION


id091700454000

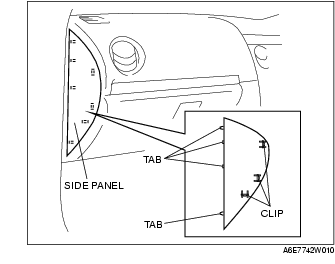

1. Disengage clips using a tape-wrapped flathead screwdriver.

2. Pull the side panel toward you, then disengage tabs from dashboard, and remove the side panel.

3. Install in the reverse order of removal.
