AUTO LIGHT SYSTEM WIRING DIAGRAM
id091800102000
Vehicle without running light system
.
|
1
|
Auto light control module
|
|
2
|
Headlight relay
|
|
3
|
Headlight (low-beam)
|
|
4
|
Headlight (high-beam)
|
|
5
|
TNS relay
|
|
6
|
Parking light/taillight/license plate light
|
|
7
|
Front fog light relay
|
|
8
|
Front fog light
|
|
9
|
Rear fog light relay
|
|
10
|
Rear fog light
|
|
11
|
Front and rear fog light switch
|
|
12
|
Front fog light switch
|
|
13
|
Rear fog light switch
|
|
14
|
Illumination light
|
|
15
|
Headlight switch
|
|
16
|
Headlight
|
|
17
|
Flash-to-pass
|
|
18
|
AUTO
|
|
19
|
Auto light sensor
|
|
20
|
ABS HU/CM or DSC HU/CM
|

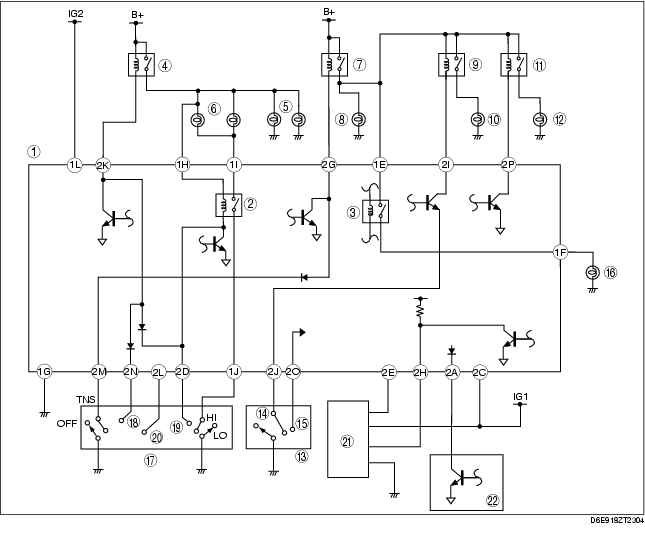

Vehicle with running light system
.
|
1
|
Auto light/running light control module
|
|
2
|
Relay A
|
|
3
|
Relay B
|
|
4
|
Headlight relay
|
|
5
|
Headlight (low-beam)
|
|
6
|
Headlight (high-beam)
|
|
7
|
TNS relay
|
|
8
|
Parking light/taillight/license plate light
|
|
9
|
Front fog light relay
|
|
10
|
Front fog light
|
|
11
|
Rear fog light relay
|
|
12
|
Rear fog light
|
|
13
|
Front and rear fog light switch
|
|
14
|
Front fog light switch
|
|
15
|
Rear fog light switch
|
|
16
|
Illumination light
|
|
17
|
Headlight switch
|
|
18
|
Headlight
|
|
19
|
Flash-to-pass
|
|
20
|
AUTO
|
|
21
|
Auto light sensor
|
|
22
|
ABS HU/CM or DSC HU/CM
|
