LIGHT SWITCH INSPECTION

Light switch LH side

1. Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION.)

2. Inspect for continuity between the light switch terminals using a tester.

• If there is any malfunction, replace the light switch.

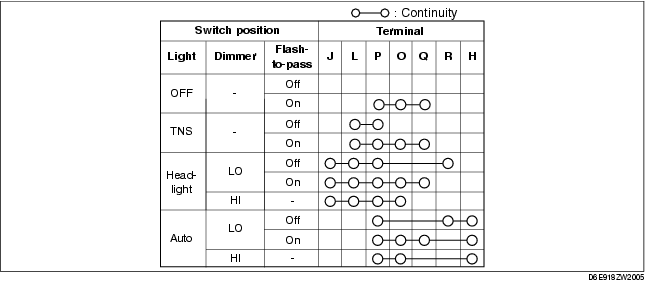

Headlight switch (Vehicle with auto light)

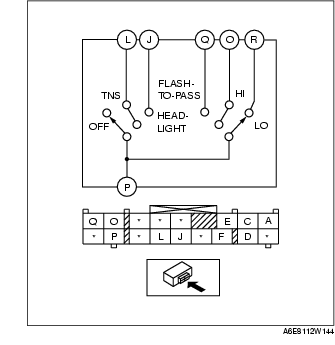

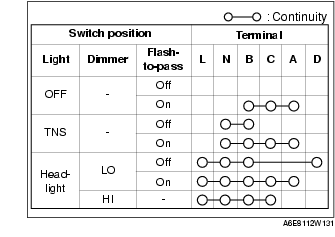

Headlight switch (Vehicle without auto light)

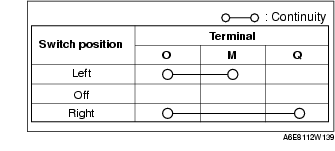

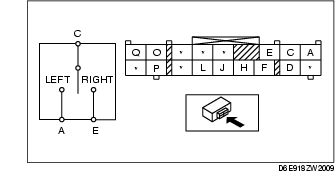

Turn switch

Light switch RH side

1. Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION.)

2. Inspect for continuity between the light switch terminals using a tester.

• If there is any malfunction, replace the light switch.

Headlight switch (Vehicle with auto light)

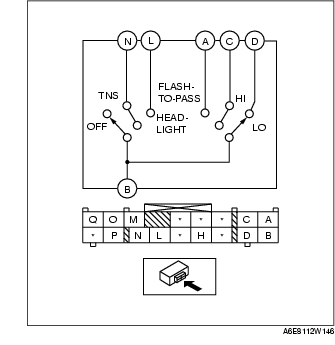

Headlight switch (Vehicle without auto light)

Turn switch
