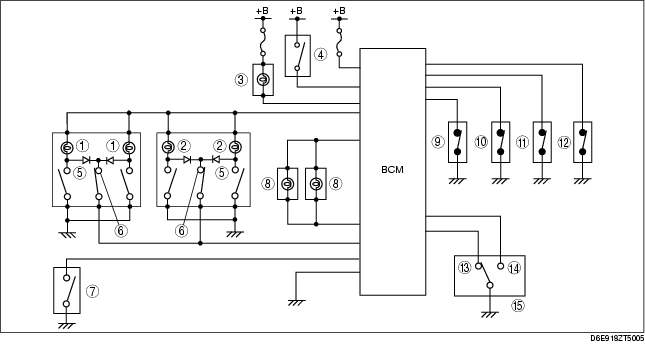

INTERIOR LIGHT CONTROL SYSTEM WIRING DIAGRAM
id091800534400
1
Front map light
2
Rear map light
3
Ignition key illumination
4
Key reminder switch
5
ON
6
DOOR
7
Trunk compartment light switch/cargo comportment light switch
8
Courtesy light
9
Door switch (front RH)
10
Door switch (front LH)
11
Door switch (rear LH)
12
Door switch (rear RH)
13
Lock
14
Unlock
15
Door lock-link switch
