VANITY MIRROR ILLUMINATION INSPECTION


id091800808500

1. Remove the sunvisor. (See SUNVISOR REMOVAL/INSTALLATION.)

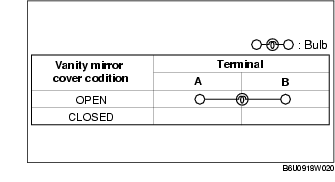

2. Check for continuity between the vanity mirror illumination terminals by using a tester.

• If there is any malfunction, replace the sunvisor.
