REAR WIPER MOTOR REMOVAL/INSTALLATION [5HB]

id0919004755a3

1. Disconnect the negative battery cable.

2. Remove the rear wiper arm and blade. (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION [5HB].)

3. Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION [5HB].)

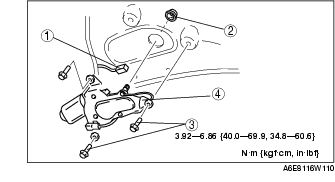

4. Remove in the order indicated in the table.

1
Connector
2
Outer bushing
3
Bolt
4
Rear wiper motor

5. Install in the reverse order of removal.

6. Adjust the rear wiper arm and blade. (See REAR WIPER ARM AND BLADE ADJUSTMENT [5HB].)
