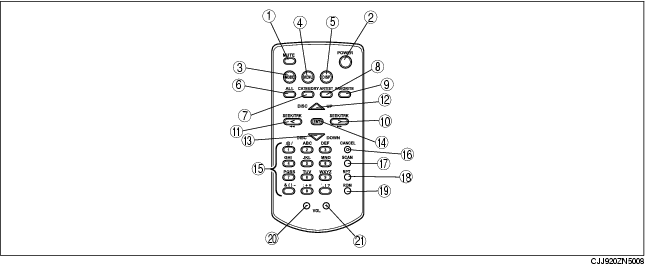

No.
|
Button
|
Function
|
|
1
|
MUTE button
|
Mute
|
|
2
|
POWER button
|
Power ON/OFF
|
|
3
|
MODE button
|
Audio mode changes
(FM1→FM2→AM→CD→HDD→AUX*)
|
|
4
|
MENU button
|
Menu screen is displayed
|
|
5
|
DISP button
|
Playback display changes
|
|
6
|
ALL button
|
HDD playback mode changes to all tracks playback mode
|
|
7
|
CATEGORY button
|
HDD playback mode changes to selected category playback mode
|
|
8
|
ARTIST button
|
HDD playback mode changes to selected artist playback mode
|
|
9
|
FAVORITE button
|
HDD playback mode changes to favorite track playback mode
|
|
10
|
TRK/SEEK UP button
|
Lightly press (less than 1.5 s)
|
• Track up during CD or HDD playback
• Cursor moves to the right during track information input
|
|
Press and hold (1.5 s or more)
|
• Track fast-forward during CD or HDD playback
• Seek up during radio mode
|
|
11
|
TRK/SEEK DOWN button
|
Lightly press (less than 1.5 s)
|
• Track down during CD or HDD playback
• Cursor moves to the left during track information input
|
|
Press and hold (1.5 s or more)
|
• Track reverse during CD or HDD playback
• Seek down during radio mode
|
|
12
|
DISC UP button
|
Album change (UP) during HDD playback
|
|
13
|
DISC DOWN button
|
Album change (DOWN) during HDD playback
|
|
14
|
ENT. button
|
Enter key
|
|
15
|
Number and symbol keys
|
Number, character, and symbol input
|
|
16
|
CANCEL button
|
Lightly press (less than 1.5 s)
|
• Selected item or mode is canceled
• Delete one character during character input
|
|
Press and hold (1.5 s or more)
|
Delete all characters during character input
|
|
17
|
SCAN button
|
Scan play
|
|
18
|
RPT button
|
Repeat play
|
|
19
|
RDM button
|
Random play
|
|
20
|
VOL button (-)
|
Volume down
|
|
21
|
VOL button (+)
|
Volume up
|
